Max 1500m/H Light Gauge Steel Framing Machines 3.5T

Name: Max 1500mH Light Gauge Steel Framing Machines 35T
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-lLGS35

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Power : 5.5kw

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works

Cutting blade material : SKD11 vacuum heatreadment 58-62hrc

Warranty of core components : 2 years

drywall coil thickness : 0.2mm-0.8mm

Design System : Vertex BD

Weight : 3.5T

Work Pressure : 12-16Mpa

Contact Now

High-Speed Multi-Story Building Light Steel Design House Calender

Only the profiles produced by the "High-speed multi-story building light steel design house calender" are enough to build all the components of the walls, floors and roofs required by ordinary houses.

"High-speed multi-story building light steel design house calender" also has the following four characteristics:

1. "High-speed multi-story building light steel design house calender" continuous cutting, high production efficiency

2. "High-speed multi-story building light steel design house calender" no waste, no material loss

3. "High-speed multi-story building light steel design house calender" has fast induction speed and more precise cutting

4. "High-speed multi-story building light steel design house calender" has good high-speed performance and stable operation

Technical parameters of High-Speed Multi-Story Building Light Steel Design House Calender

Size	8941mm or 14038mm
Thickness	0.6-1.2mm(G300-G550 Galvanzied coils and Aluzinc )
Feeding width	182mm
Standard Producing speed	300-700m/h
Max producing speed	1500m/h
Main motor	5.5kw Servo motor
Power supplier	380V 50Hz 3phases according to your request
Hydraulic station	7.5kw Siemens Motor
Hydraulic tank capacity	100L
Hydraulic cooling	Fan cooling
Hydraulic pressure	Manually set
Host cordless remote control	Standard
Frame and punching dies	Screw hole, chamfer, 15mm web hole, flange cut, 35mm pipe hole, suspension, cutting,
Product accuracy+-	0.5mm
CNC inkjet-printer	Video Jet
Size	47009501200mm
Weight	5000kg
Color	according to your request
De-colier	bearing 2 tonne, automatical decoiler

Product Tags:

1500m/h Light Gauge Steel Framing Machines

3.5T Light Gauge Steel Framing Machines

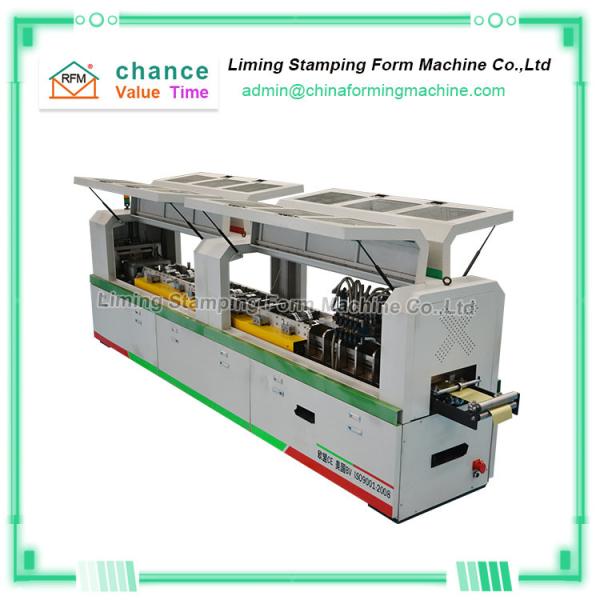

Max 1500m/H Light Gauge Steel Framing Machines 3.5T Images
